PCF8575 Modules

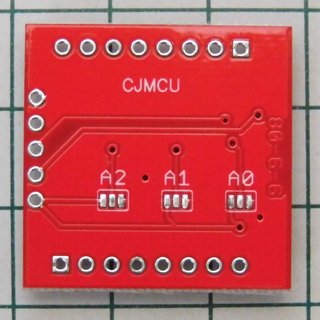

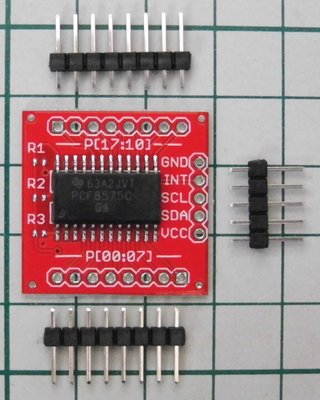

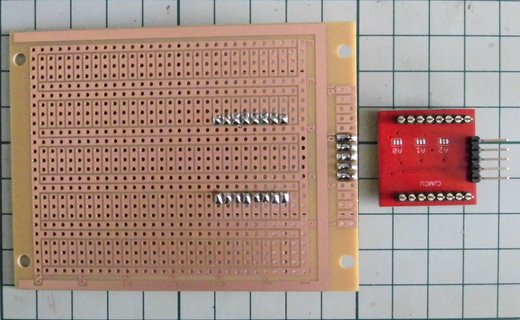

Original Module1, As Supplied:




"Version 2" of a Dual-I2C-LCD Interface

(cf. "Version 1", MCP23017-based here:)

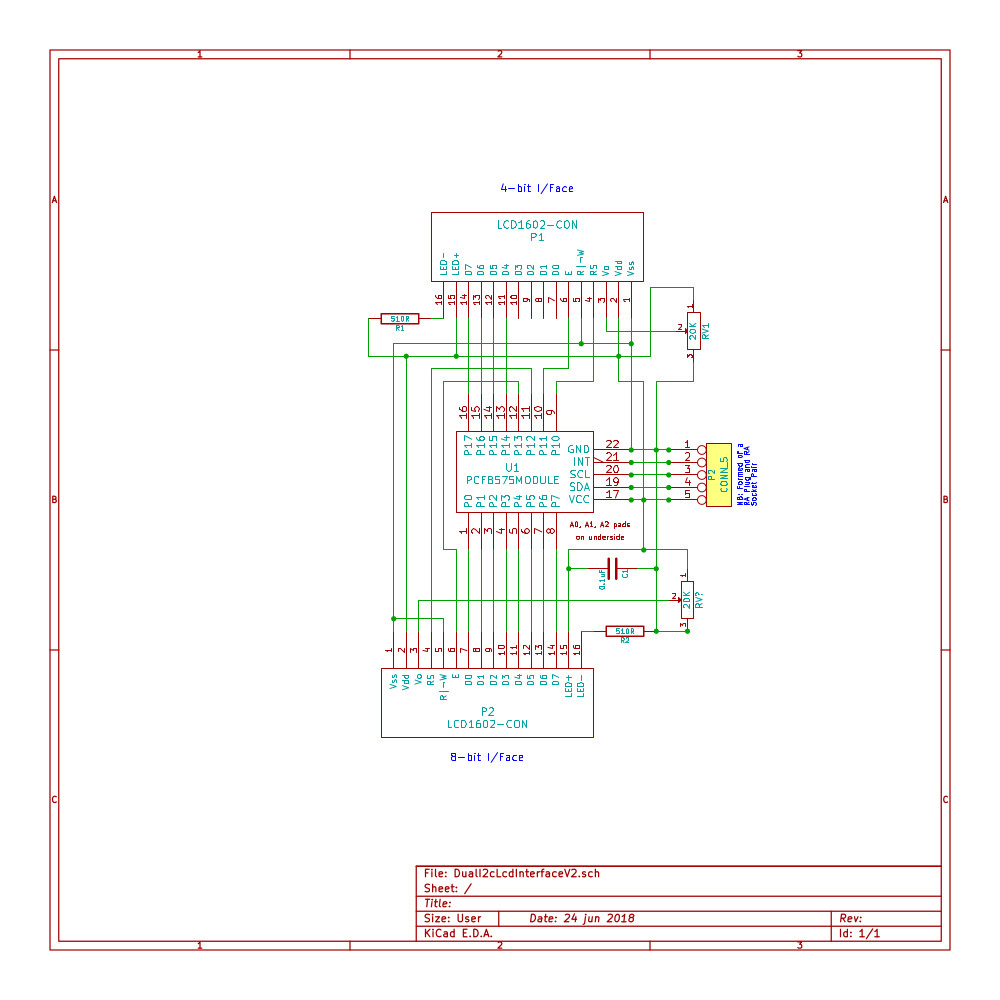

Schematic:

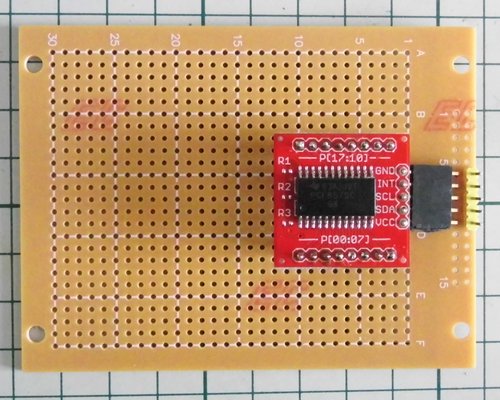

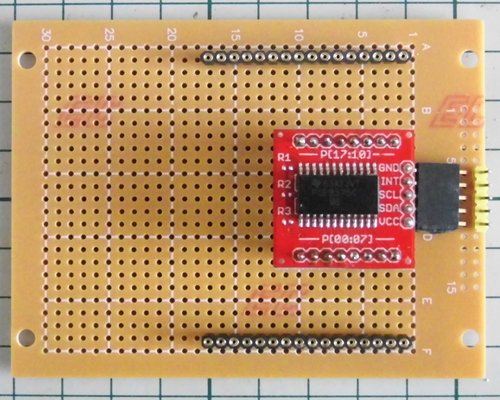

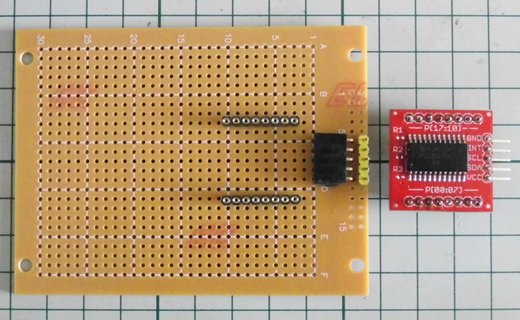

Build Steps:

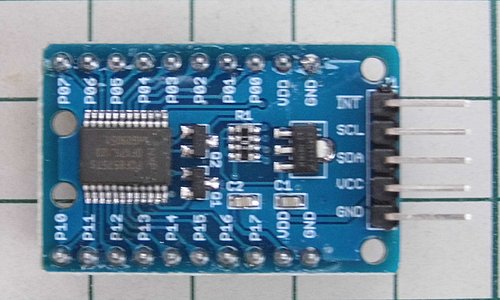

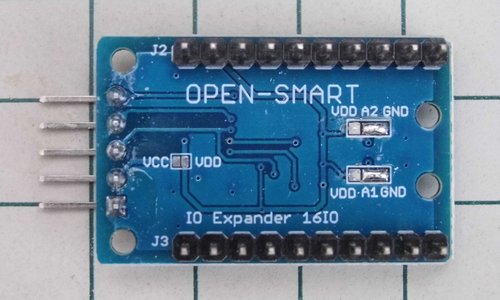

Alternative Module, As Supplied:





  1. Died during testing (1)
