OEM Hub PSU

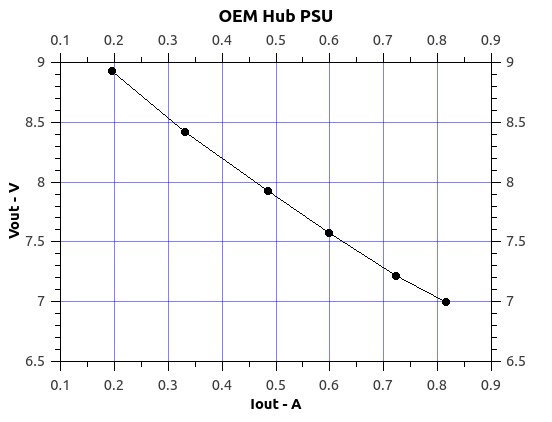

This is an example of the load behaviour of an unregulated PSU1.


Spec: 6V DC 2.1A
Slope resistance: 2.4 Ω2, Vmax: 6.6 V3
NB: Open-circuit voltage: 10.5 V

(back to USB Power Supplies)


  1. as supplied with this hub (1)

  2. Between 5th. & 6th. data points (2)

  3. Imax 1000mA (3)
